A KEF Concept designed by Ross Lovegrove
The MUON Story
One of the reasons why MUON has such outstanding sound quality is its unusually wide bandwidth. It reproduces sounds that are so low and so high that the human ear does not register them in the normal way. We can feel very low bass and tests have show that we sense very high frequencies, so this extra information increases the realism of the overall sound. The way that Ross Lovegrove has wrapped form around sound in MUON reveals that great design and superlative sound can coexist in one product.
Not only is MUON iconic in its styling, its design and manufacture would not have been possible without highly sophisticated CAD/CAM software and technology. Guided by engineering and aesthetics, MUON is as much an extraordinary piece of sculpture as it is the ultimate sound provider. It's an exquisite example of British engineering and design at its very best.
The Technology Behind MUON
MUON has established a major benchmark in acoustic transparency. It has achieved this through several key innovations in form, function and materials. As KEF's senior engineer Dr Andrew Watson puts it. 'we wanted to take our technology to the limit and then develop some more along the way'.
Perfect musical form

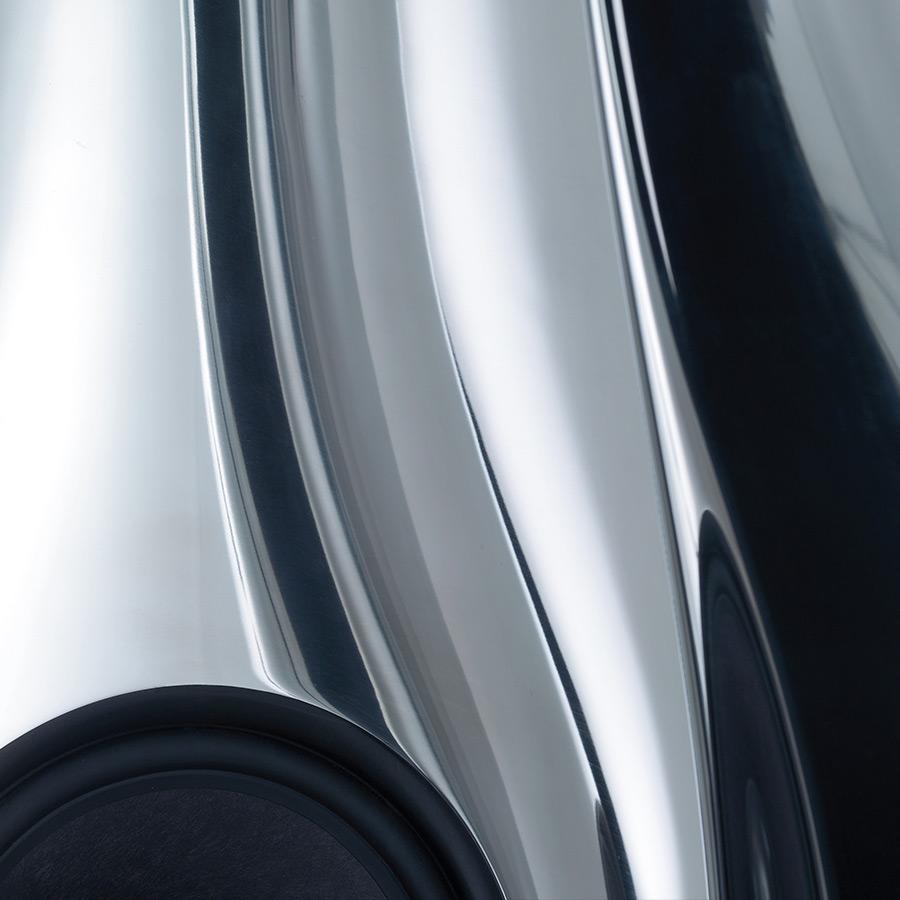

MUON's 6mm thick aluminium shell provides a totally rigid structure that minimizes sound-distorting vibrations. Inside are strengthening braces and a coating of damping compound that makes the whole unit completely inert, even when the speaker is playing loud.
Uni-Q driver array
KEF's patented 'sit anywhere' Uni-Q driver places the tweeter in the acoustic centre of the midrange cone. This allows both midrange and tweeter to act as a single, focused source of sound that is dispersed widely and evenly throughout the room. In MUON the smooth curved shape of Ross Lovegrove's beautiful cabinet design significantly enhances the benefits of Uni-Q by removing sharp edges that cause diffraction and blur the image. The result is truly extraordinary sound quality that can be experienced from anywhere in the listening environment with no obvious "sweet spot" effect. Find out more about Uni-Q.
1 x 250mm (10in.) LMF,
Uni-Q driver array:
MF: 1 x 125mm (5in.) Li-Mg-Al /LCP, hybrid cone
HF: 1 x 25mm (1in.) vented aluminium dome, featuring KEF's
unique 'Tangerine Waveguide'
20Hz (-6dB) typical in room bass response
