Dolby Atmos flexible surround
Dolby Atmos offers the potential for full immersion cinema, the Q50a uses Uni-Q technology to deliver it in full effect.
Optimised for Q Series home theatre systems the Q50a Dolby Atmos-Enabled Surround Speaker features the latest Uni-Q driver array and advanced technology for serious dynamics and accurate, clean sound.
Optimised for Q Series home theatre systems the Q50a Dolby Atmos-Enabled Surround Speaker features the latest Uni-Q driver array and advanced technology for serious dynamics and accurate, clean sound.

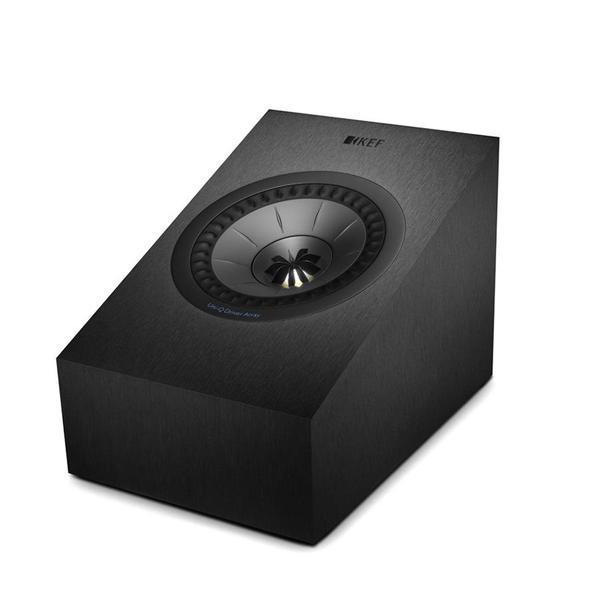

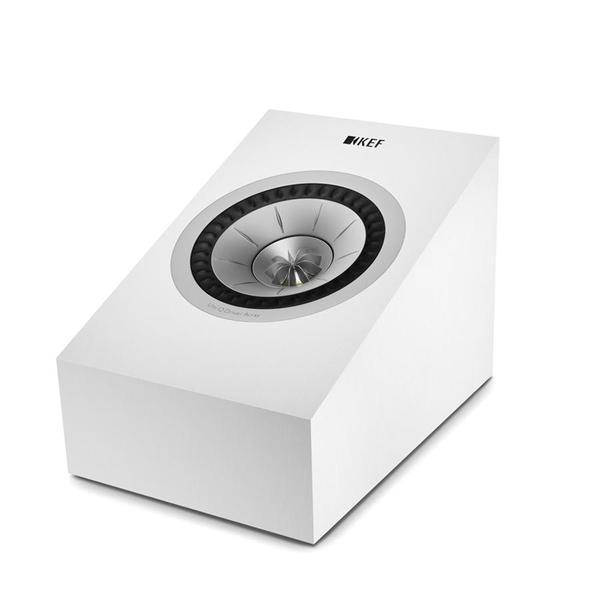

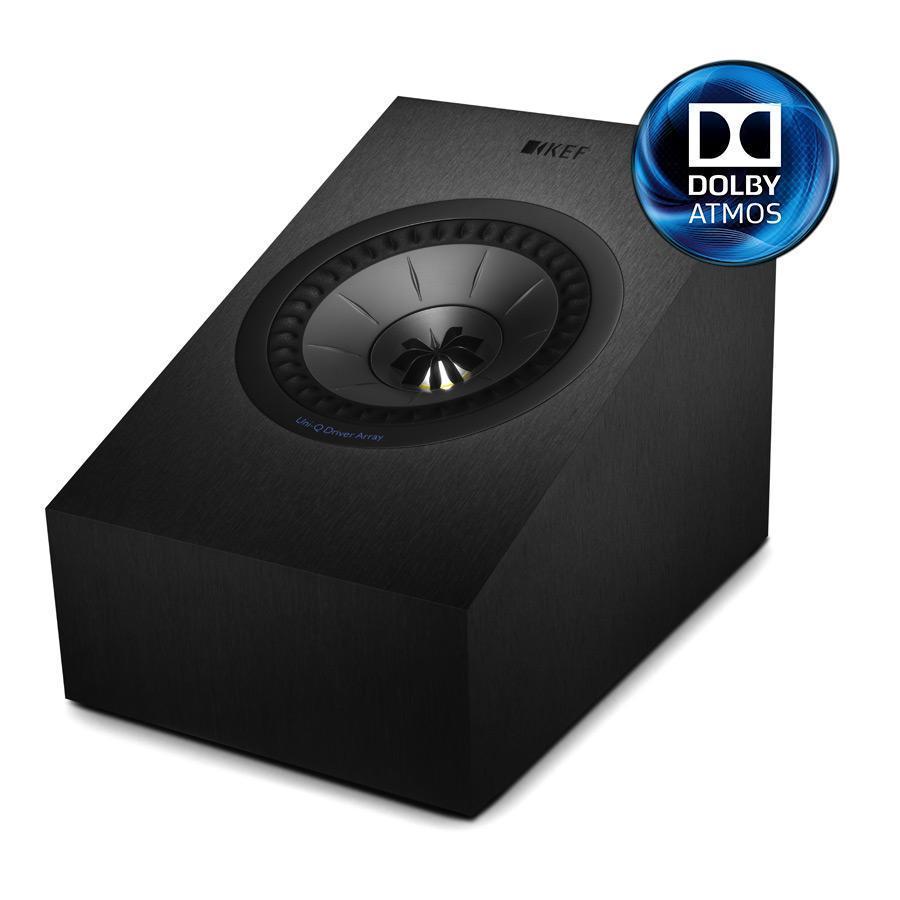

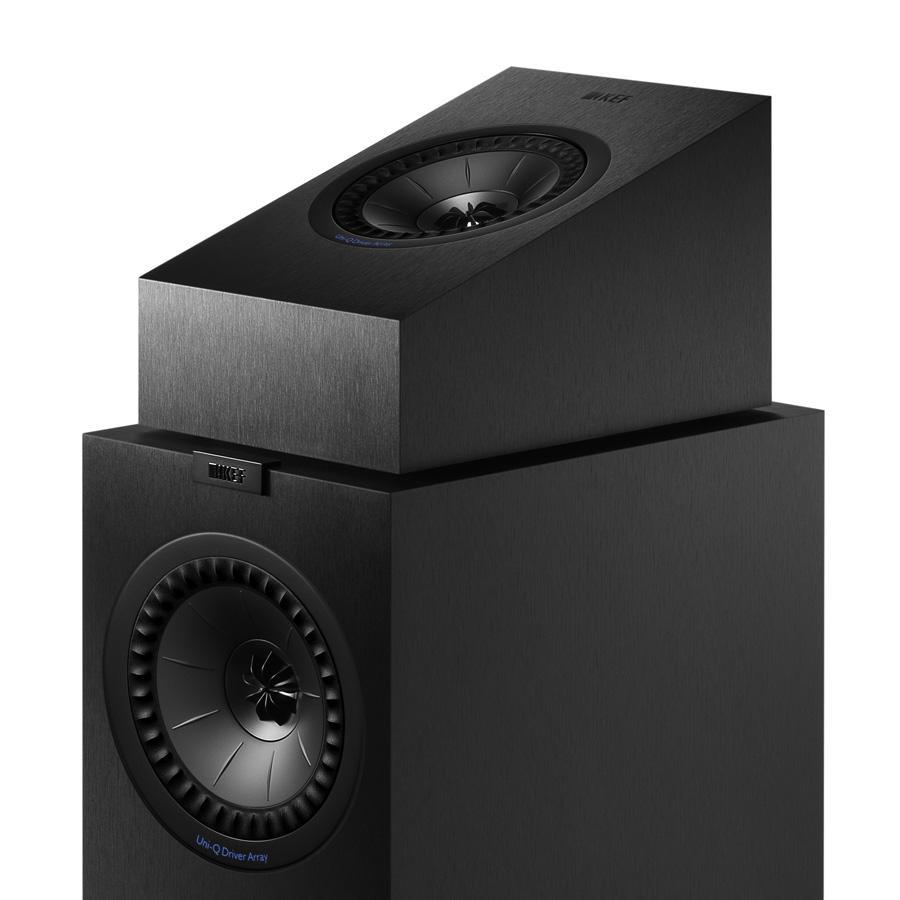

Q50a Dolby Atmos-Enabled Surround Speaker
Q50a brings immersive Dolby Atmos height to Q Series home theatre systems. It is also easily mounted on the wall for a high-fidelity surround sound experience. Its Damped Tweeter Loading Tube produces a detailed and natural high frequency sound, and the styling means the Q50a will blend seamlessly into any interior.
Dolby Atmos. Effortlessly.

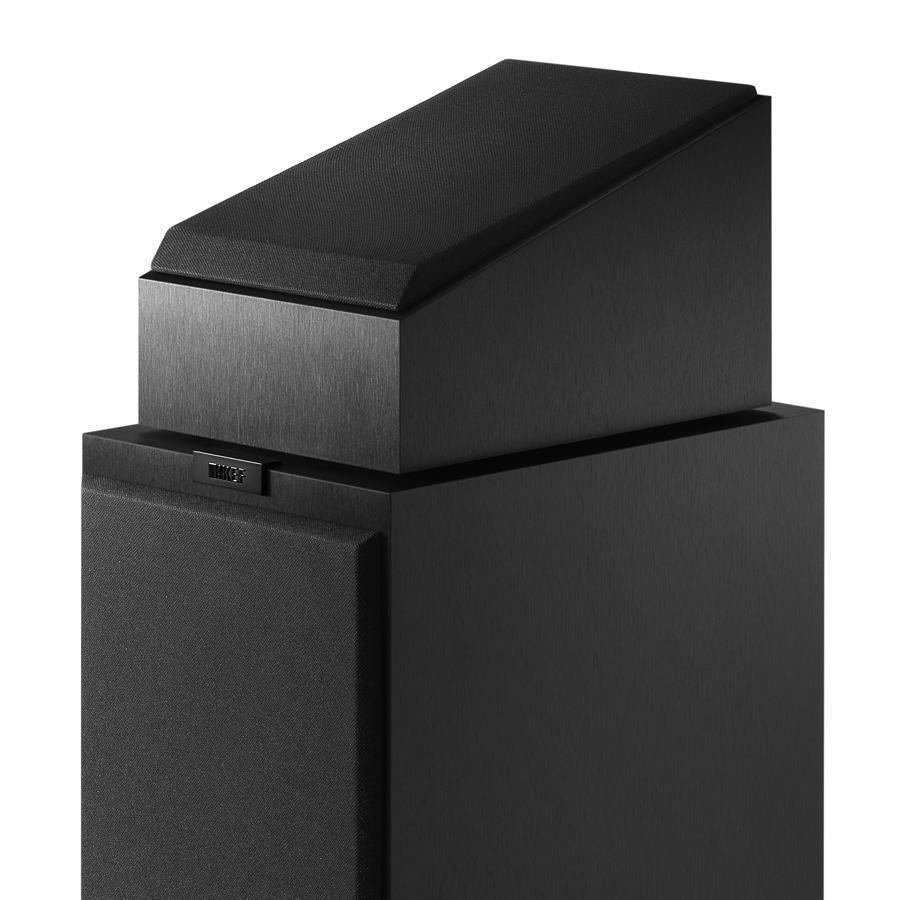

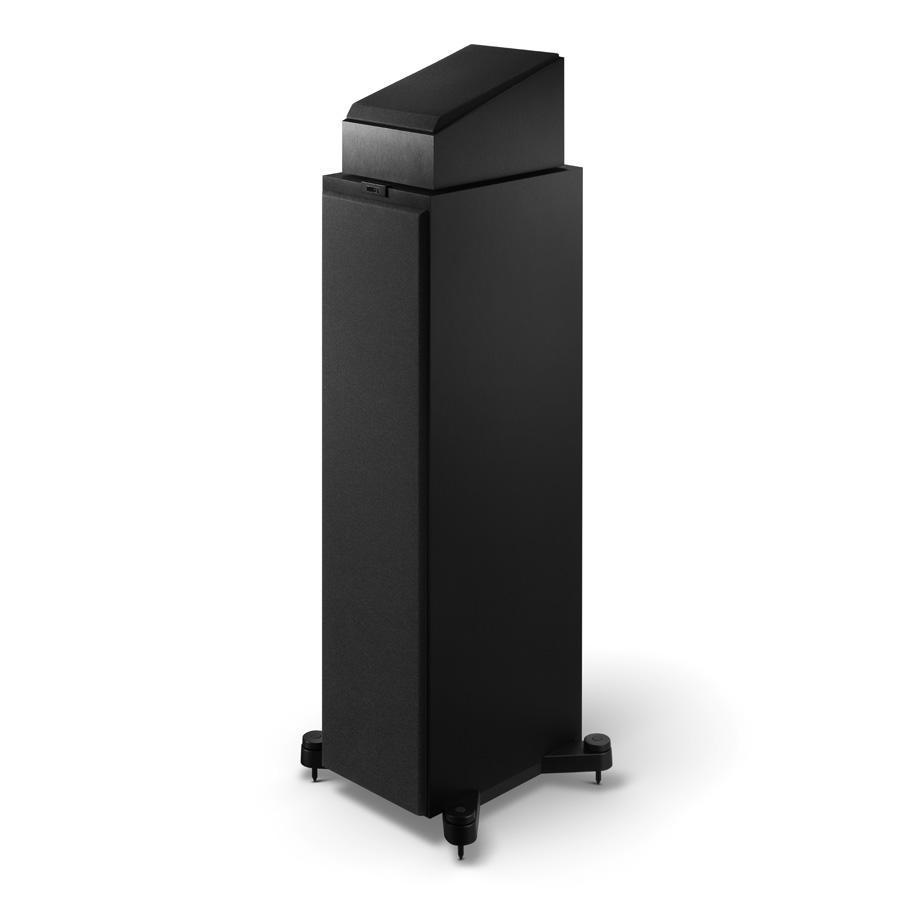

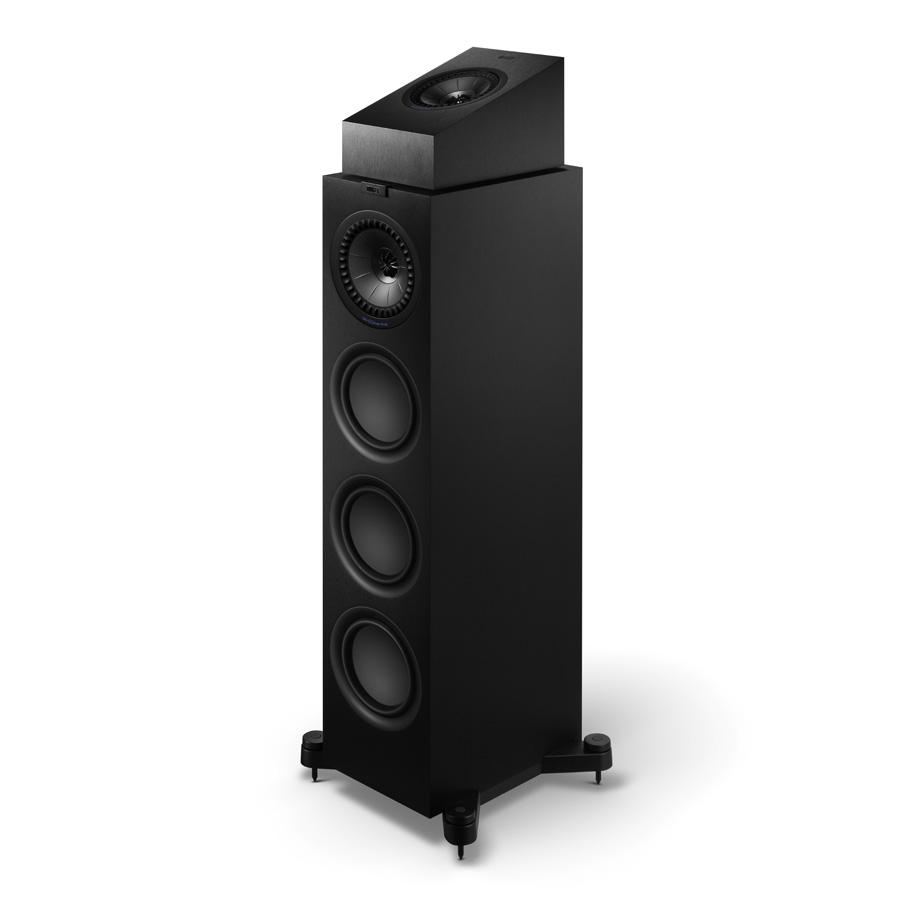

Sense everything and truly be inside the action. By incorporating the Q50a up-firing Dolby Atmos-enabled speaker module onto front and rear satellites, a staggeringly realistic and multi-dimensional soundstage is created – hear the immersive sounds of overhead helicopters whirling above, feel the exhilaration of flying and swinging alongside superheroes, and let the captivating music wrap around you.
The Details
SPECIFICATIONS
Weight
4.25kg (9.4 lbs)
Dimension (H x W x D)
174 x 180 x 259 mm
178 x 180 x 259 mm with rubber feet
178 x 180 x 259 mm with rubber feet
Design
2-way Closed Box
Unit Measurement
Pair
Sensitivity
(2.83V/1m) 86dB
Frequency Range Free Field
96Hz-19.5kHz (-6dB)
Frequency Response
105Hz-18.5kHz (±3dB)
Crossover Frequencies
2.5kHz
Maximum Output
106dB
Amplifier Requirements
10-100W
Nominal Impedance
8 Ohms (min.4.6 Ohms)
Drive Units
130mm (5.25in.) aluminium Uni-Q
25mm (1in.) vented aluminium dome HF
25mm (1in.) vented aluminium dome HF
Crossover Frequencies
2.5kHz
Finishes
Black / White
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. * Measurement per unit
AWARDS & REVIEWS
BEST FLOORSTANDING SPEAKER SYSTEM – AVTECH MEDIA AWARDS 2017/18
Effects transitions across the array are seamless, soundscapes have immersive three dimensionality, and there’s an effortless nature to its delivery that beguiles.
Full Review
BEST BUY – HOME CINEMA CHOICE, ISSUE 280
This Q Series package delivers an outstandingly cinematic and largescale presentation (with Atmos highs) from well-built speakers.
Full ReviewDOLBY ATMOS SETUP CONFIGURATIONS
What do I need?
With an A/V receiver or pre-processor that supports Dolby Atmos decoding and playback in your system, you can play Dolby Atmos content at home through any Blu-ray disc player or game console, or via your favourite streaming service (with the device set to bitstream output and secondary audio disabled). Simply add the Q50a speaker modules to the front and rear satellites, it will transform your entertainment like never before. Alternatively, you can choose KEF’s Architectural Speakers for the most cinema-like Dolby Atmos experience with incredibly discreet installation.

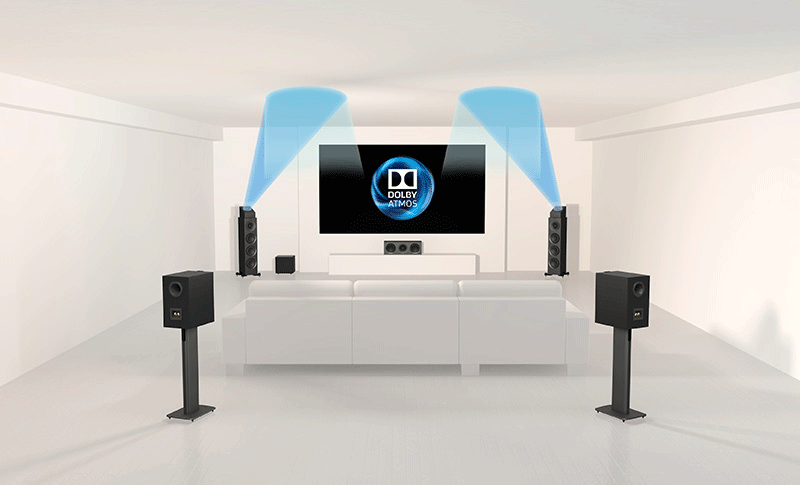

5.1.2 Setup
Featuring 2 x Q50a and 1 x subwoofer

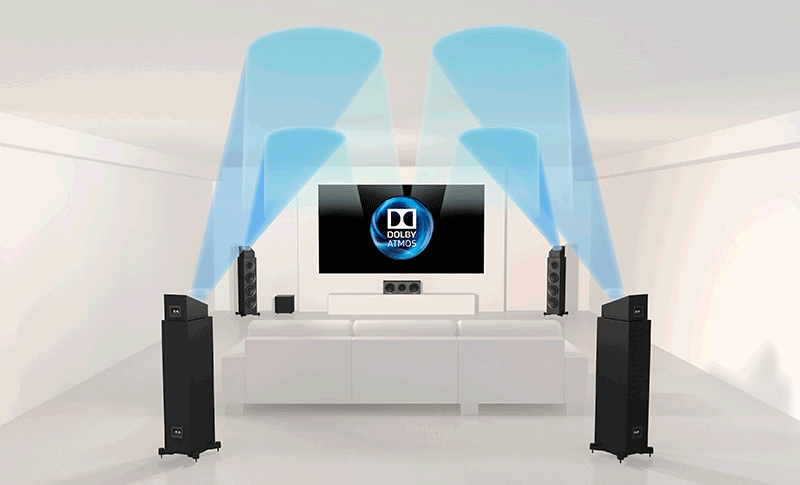

5.1.4 Setup
Featuring 4 x Q50a and 1 x subwoofer
