Architectural Speakers

Ci5160RLM-THX

  • Limited offer
  • $3,999.99

Ultra-high performance architectural speaker with MAT™

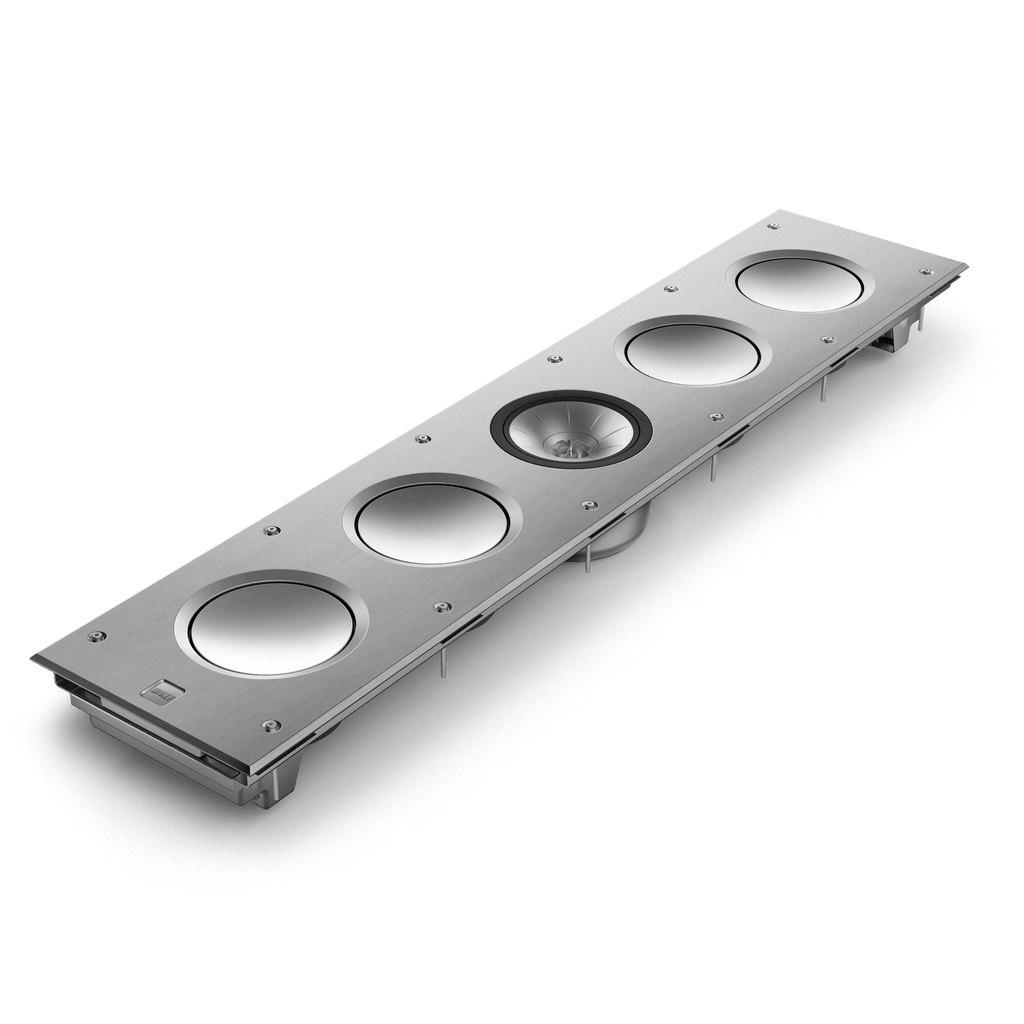

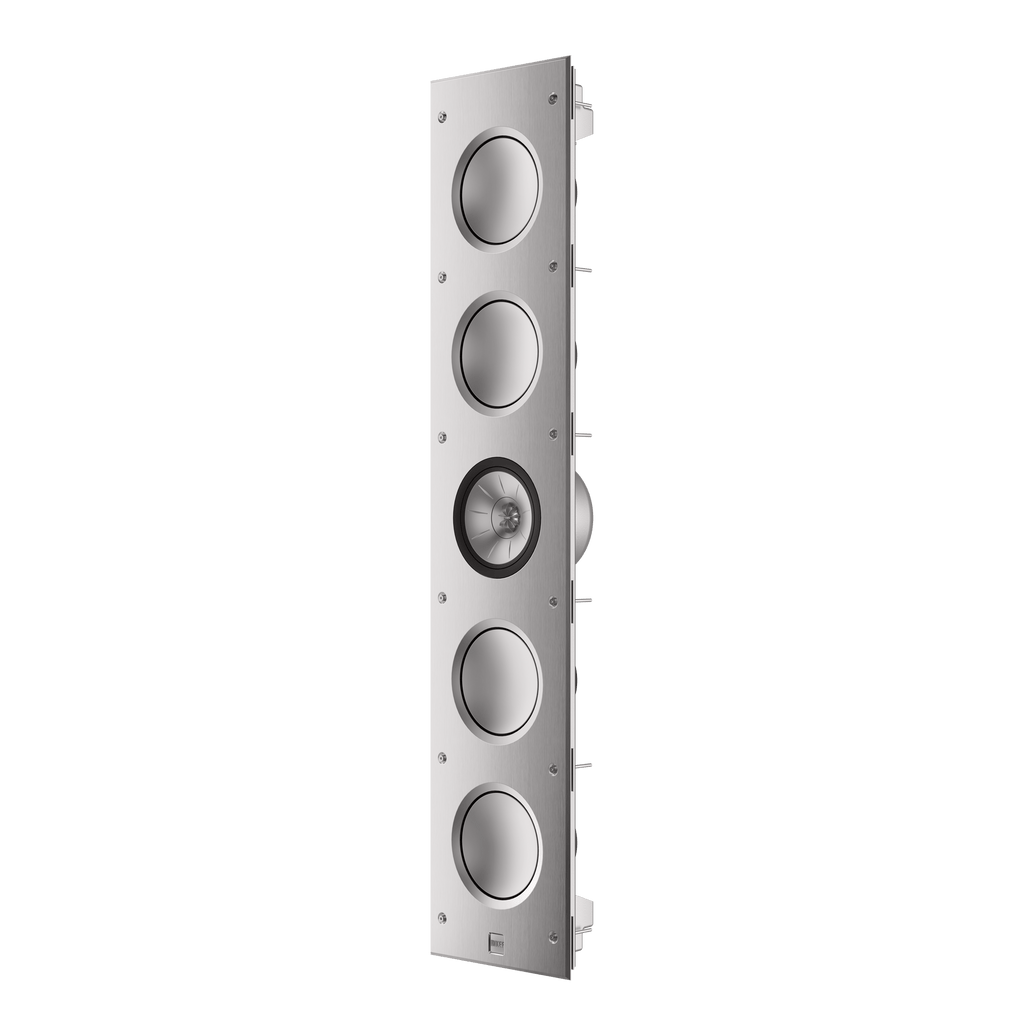

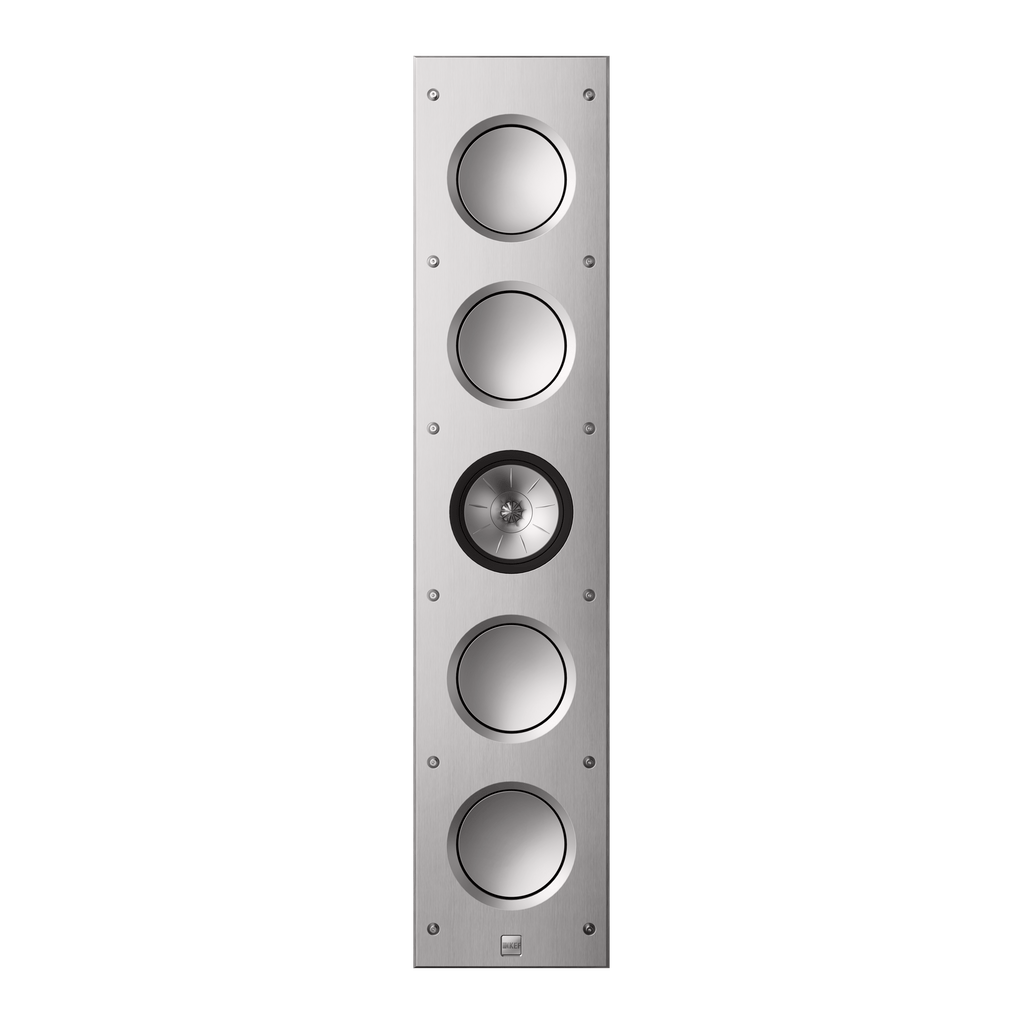

The Ci5160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximise its full potential and proudly carries the THX Certified Ultra designation. Together with four 6.5” hybrid aluminium bass drivers, it delivers the most dynamic audio experience for home theatres.
Select a property

Select a property

Select a property

Select a property
Select a property

Select a property

Select a property

Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Grille Off

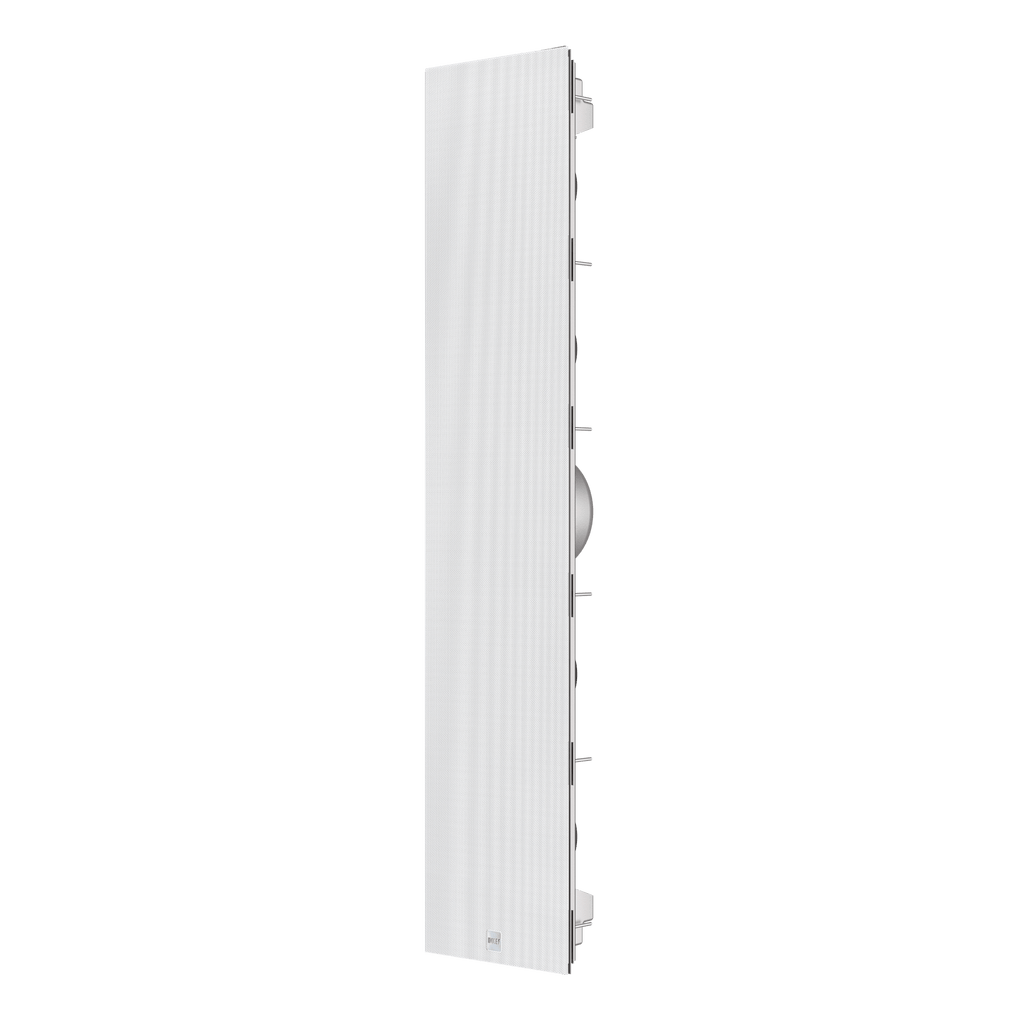

Grille On
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property

See it from all angles

Looks as great as it sounds, use our 360◦ interactive spin function to check out all the well-considered details of Ci5160RLM-THX.
Select a property
Select a property
Select a property
Select a property

What is in the box

Ci5160RLM-THX x 1
Metal grille x 1
Cutout template x 1
Gasket x 4
Hex drill tool x 1
Wall protection tape x 3
Warranty booklet
Manual

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Metamaterial Absorption Technology

Absorbs 99% of the unwanted sound

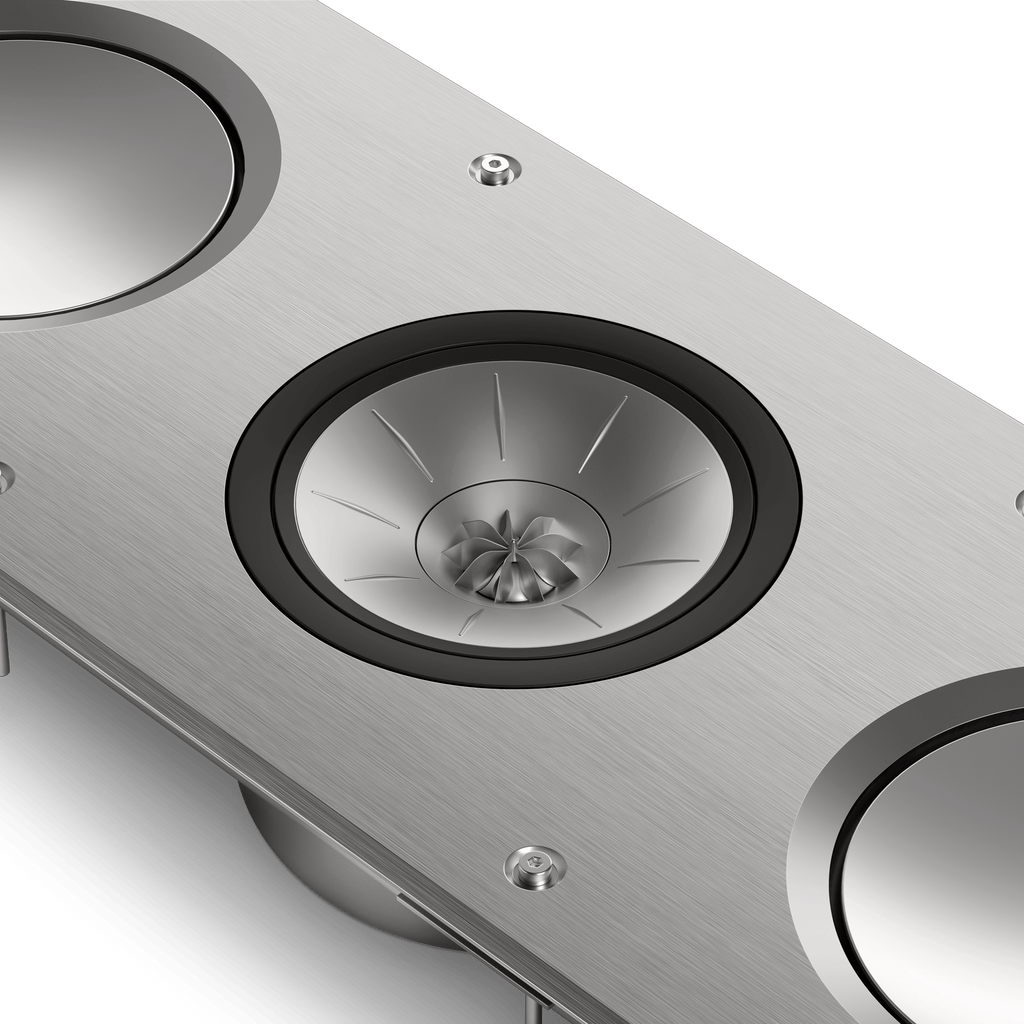

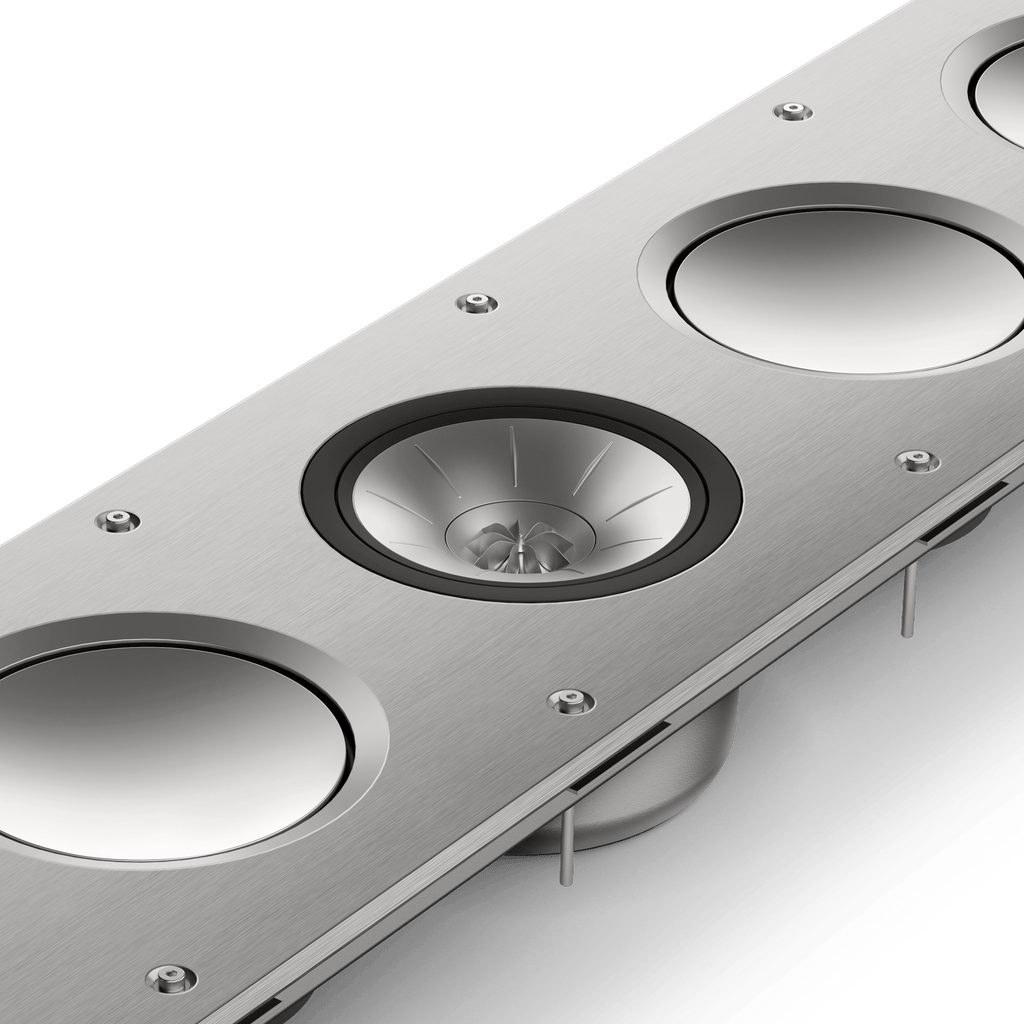

Uni-Q®

Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly.

THX Certified

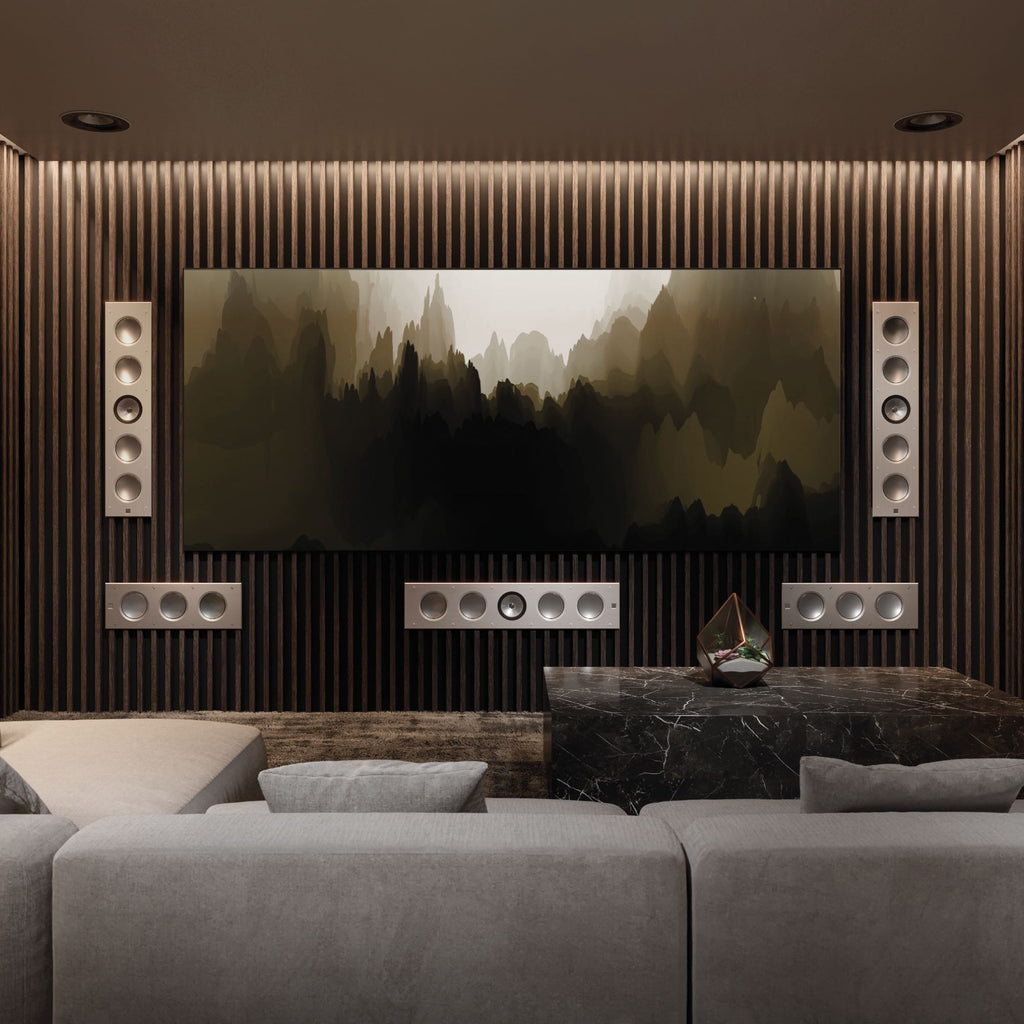

Ci5160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.

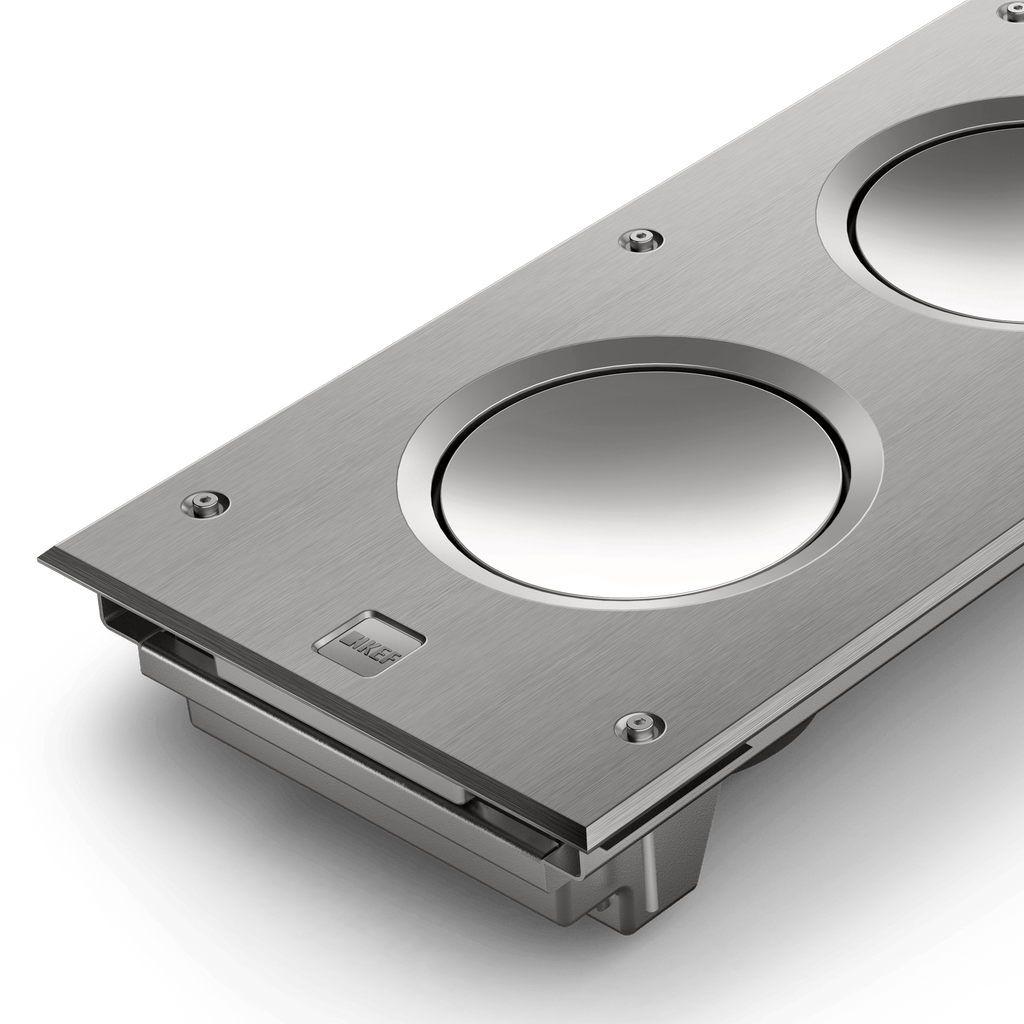

True bass definition

Four hybrid aluminium bass drivers for tight, deep, controlled bass.

Total attention to detail

The 5.5 mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.

Hide your speakers, not your sound

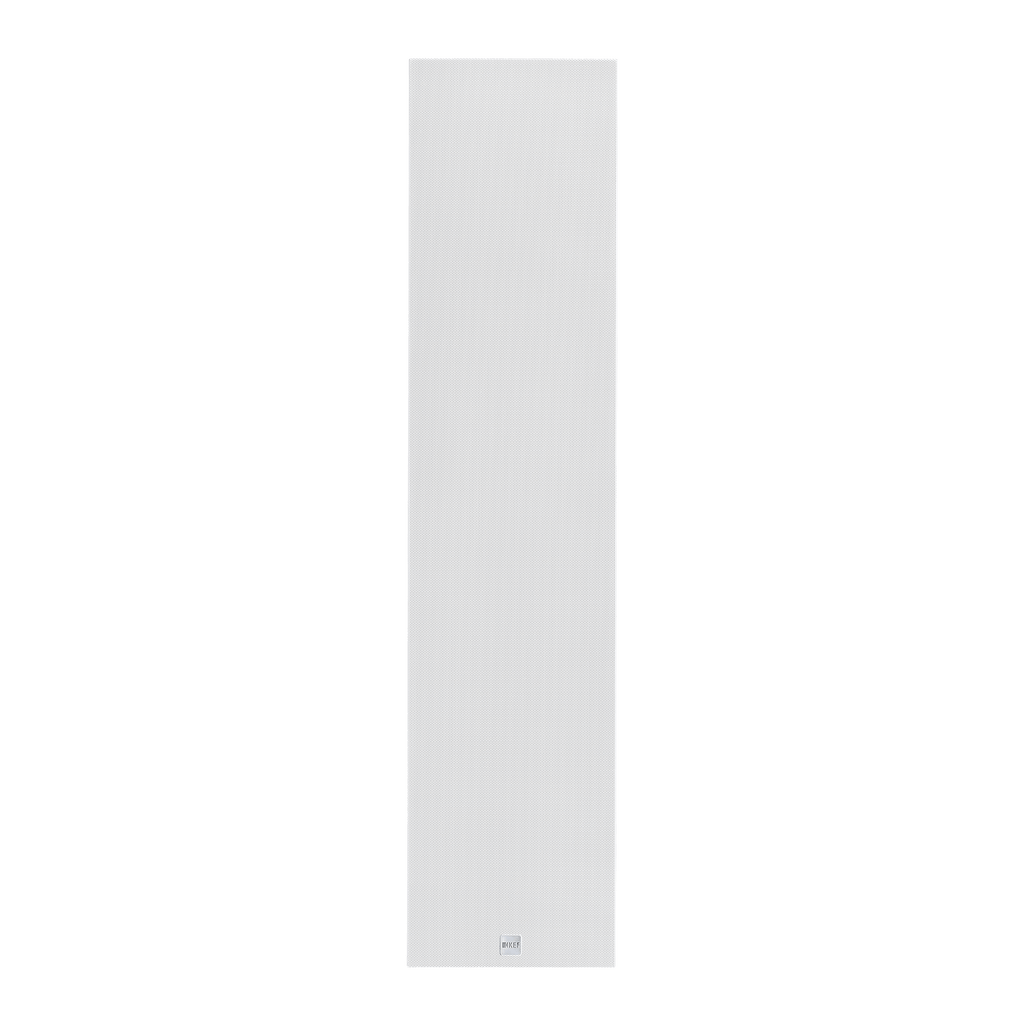

The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

Finished to perfection

Available in Aluminium Silver, including tone matched Uni-Q and bass drivers.

Select a property
See it from all angles
Looks as great as it sounds, use our 360◦ interactive spin function to check out all the well-considered details of Ci5160RLM-THX.
*Actual product colour may vary from the AR version shown.
**This feature is not supported on Chrome for iOS devices.
Select a property
What is in the box
Ci5160RLM-THX x 1
Metal grille x 1
Cutout template x 1
Gasket x 4
Hex drill tool x 1
Wall protection tape x 3
Warranty booklet
Manual
*Actual product colour may vary from the AR version shown.
**This feature is not supported on Chrome for iOS devices.

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

The Details

FEATURES

accordion open

SPECIFICATIONS

accordion open
Series
R Series
Nominal Impedance
4Ω
Sensitivity (2.83V/1m)
89dB
Frequency Response (±6 dB) open-backed
40 - 28kHz
Frequency Range (-10 dB)
32 - 45kHz
Nominal Coverage (degrees)
150°
Crossover Frequency
640Hz, 2.6kHz
Drive Units
LF: 4 x 160mm (6.5in.)
MF: 160mm (6.5in.) Uni-Q
HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology1
Recommended Amplifier Power
50 - 350 W
Recommended High-pass Filter (Hz)
35Hz - 80Hz
Product External Dimensions (H X W X D)
1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16in.)
Cut-out Dimensions (H X W)
1052 x 209mm (41.42 x 8.23in.)
Net Weight
18.7kg (41.1lbs.)
Mounting Depth From Surface
99mm (3.9in.)
Optional Rough In Frame
RIF5160L
Ideal Rear Volume (L)
90
Minimum Rear Volume (L)
40
Max SPL (dB)
110dB
Certification
THX® Certified Ultra
Wall Thickness (Maximum)
40mm (1.58in.)
Wall Thickness (Minimum)
6mm  (0.24in.)
Remarks

1 Metamaterial Absorption Technology is a joint development with Acoustic Metamaterials Group.
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions.
